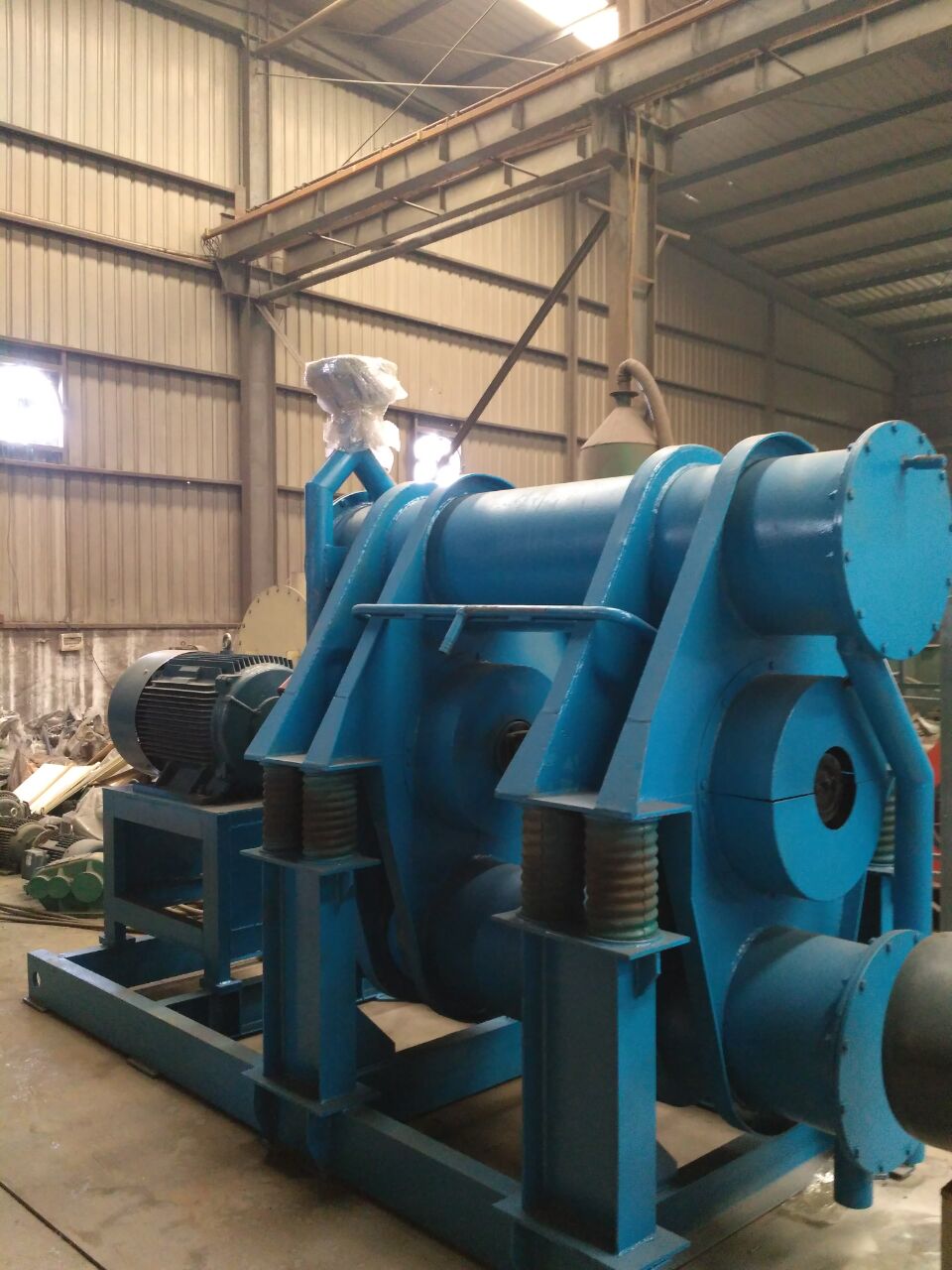

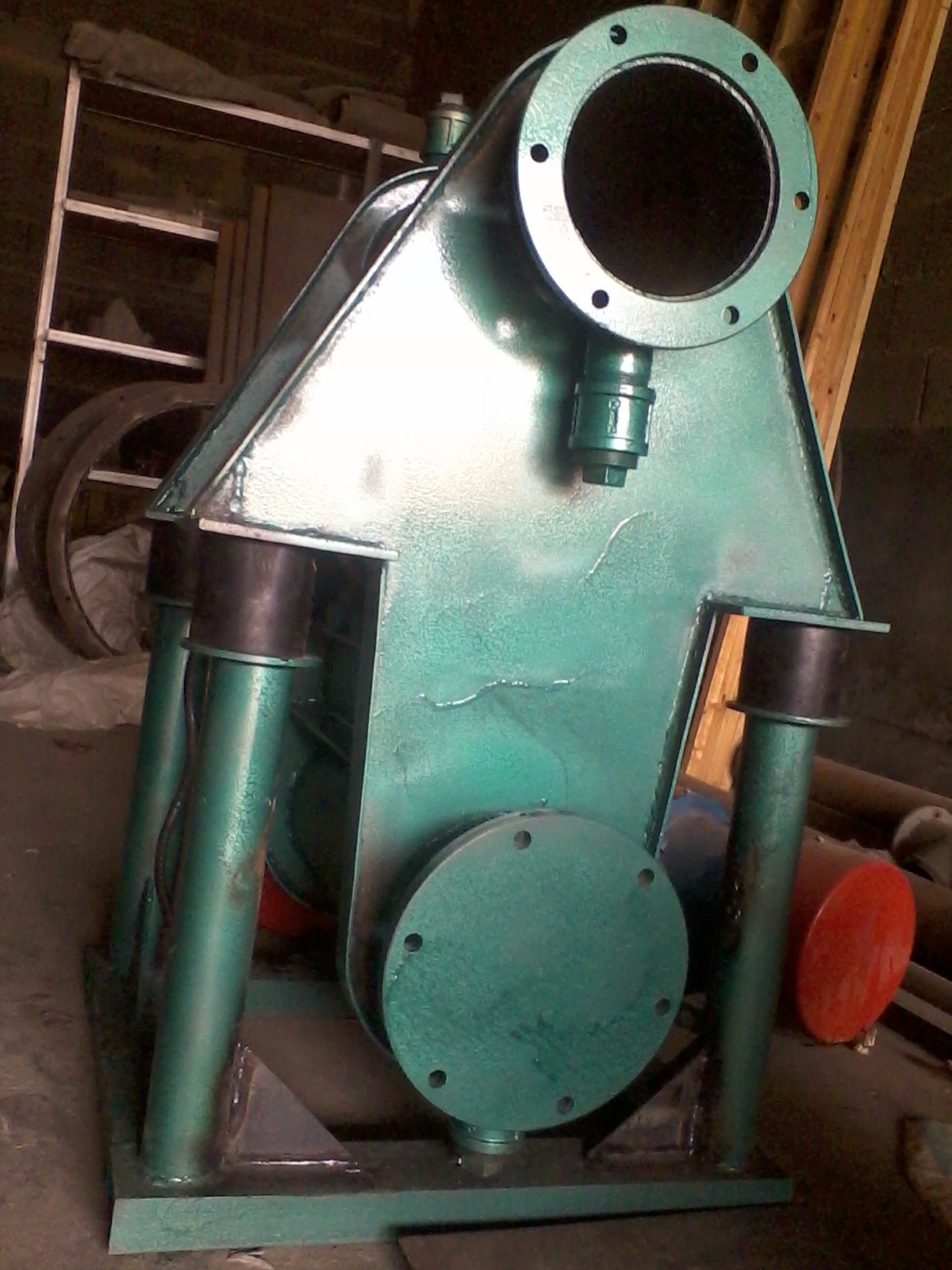

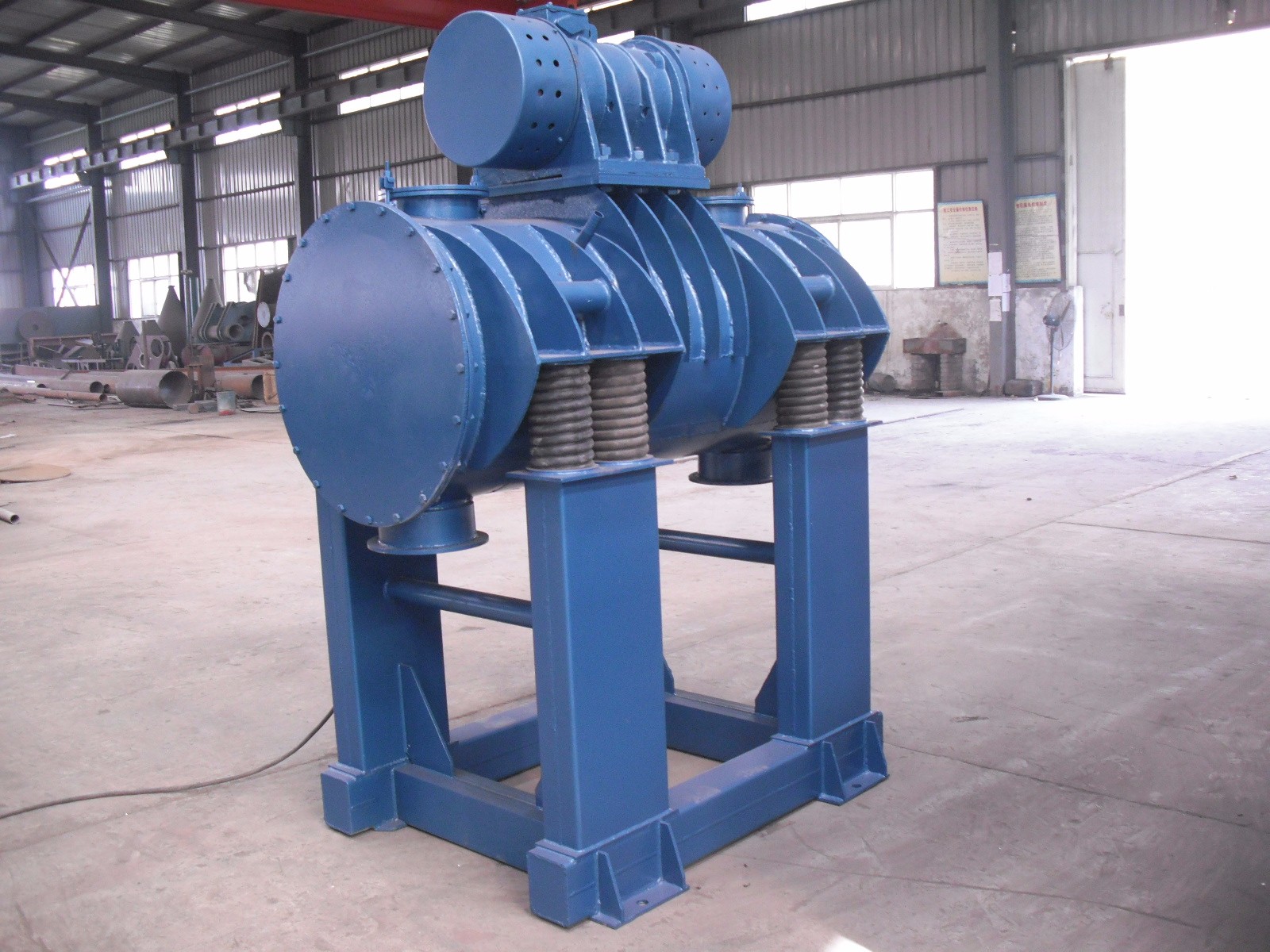

Single tube vibrating mill
單筒振動磨機
Introduction
簡介
Single tube vibrating mill is an efficient grinding equipment in grinding fine and super fine powder material,it has the features of high efficiency, low energy consumption,reasonable structure , and it is easy to install and maintain.The machine can be widely used in mineral, building materials,grinding materials of powder metallurgy ,electric, ceramic, refractory, magnetic material, chemical, food ,and other industries.
單筒振動磨機是一種高效的細磨和超細粉磨設備,它具有效率高、能耗低、結構合理,易于安裝和維修等優點。該機可廣泛應用于礦產、建筑材料、研磨材料粉末冶金、電子、陶瓷、耐火材料、磁性材料、化工、食品等行業。
Technical parameter
技術參數表
Model 型號 | ZM100 | ZM400 | ZM600 | ZM800 | ZM1000 | ZM1200 | ZM1500 | ZM2000 |
Rotor mode 電機型號 | HB30-6 | HB100-6 | HB140-6 | HB160-6 | HB180-6 | HB240-6 | HB250-6 | HB300-6 |
Power(kw) 功率 | 2. 2 | 7.5 | 9.5 | 12 | 14 | 18.5 | 21 | 25 |
Roller Volume(L) 筒體容積 | 100 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
Output (Kg/h) 產量 | 50-150 | 50-300 | 50-600 | 50-1000 | 100-1500 | 100-1800 | 100-2000 | 100-3000 |
Feeding size 入料粒度 | 0-25 | |||||||
Discharging size 出料粒度(μm) | 10-45 | |||||||
Vibration Frequency 振頻（r/min） | 980 | |||||||
Amplitude 振幅 (mm) | 0-10 | |||||||
